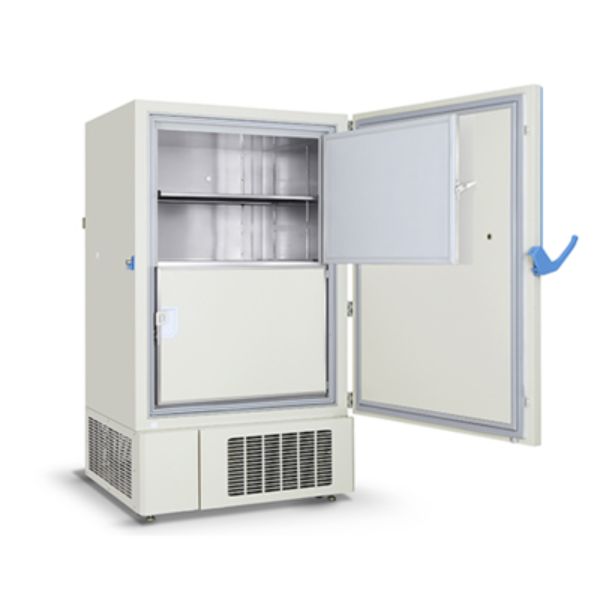

‘-86℃ Ultra-low Temperature Freezer DW-HL1008HC
Features
– D-form copper tube evaporator for better heating dissipation
– 7”inches LED screen control system has clear display and allows more accurate temperature control
– 2-layers of solid doors with 2 independent inner doors to protect your lab and medical materials in proper temperature
– SPCC steel with powder coating external material and 304 grade stainless steel inner material, exquisite beauty and easy to clean
– Optimized storage space design to accommodate up to inventory 2″box in 770 pieces and inventory 2ml vial in 77000 pieces
– PT-100 platinum resistance sensors which is very sensitive to the temperature changing
– Lockable door and keyboard lock with password to prevent unauthorized operating and access
– Enable machine startup delay, power off protection, and 72 hours battery backup for controller display
– Designed with USB datalogger to record relevant temperature data, which can be downloaded and checked
– Optional temperature recorder, CO2 back-up system, and low voltage surge protector
– Certificate: CE certificate, ISO9001, ISO14001, ISO13485
Access Test Port: 3
Backup Battery: Standard
Cabinet Type: Upright
Capacity (Effective): 1008L
Casters: 4 casters with 2 leveling feet
Chart Recorder: Optional
Climatic: N
CO2 Back Up System: Optional
Compressor: 2 pcs
Compressor Brand: Secop (danfoss)
Cooling: Direct cooling
Data Logger: USB
Data Output: USB
Defrost: Manual defrost
Dimensions External (W*D*H,mm): 1362W*1025D*1994H (mm)
Dimensions Internal (W*D*H,mm): 1022W*696D*1378H (mm)
Display: Touch screen
Door Lock: Yes
Evaporate: D-form copper tube
Fan Motor: EBM
Inner doors: 2pcs
Insulation: VIP Plus vacuum insulation panel
Insulation Thickness (mm): 130
Inventory 2" Box (pc): 5*5*14+6*5*14=770
Inventory 2ml Vial (pc): 77000
Inventory Rack (Model & Quantity): ZKL304-552B-CT:14 + ZKL304-652B-CT:14
Material (External): Cold rolled steel
Material (Interior): Stainless steel
Model: DW-HL1008HC
Refrigerant: Hydrocarbon
Sealing Material: MVQ
Shelves: 3pcs
Status Alarm conditions: Visual & Audio
High / low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, filter blocking alarm, system failure alarm
Temp.Range(°C): -40℃~ -86℃
Temperature (Ambient): 16℃ ~ 32℃
Weight (Net/Gross): 426/510 (Kg)
